Hydraulic Sheet Metal Forming Dies Multi V Bending Die

Ask Lasest Price
Brand Name :	OEM
Model Number :	Multi-V Bottom Mold
Certification :	ISO9001
Supply Ability :	200 Set/Sets per Month Sheet Metal Forming Press Brake Multi-V Bottom Bending Die
Price :	$100.00 - $1,100.00/sets

Add to Cart

Product Details
Company Profile

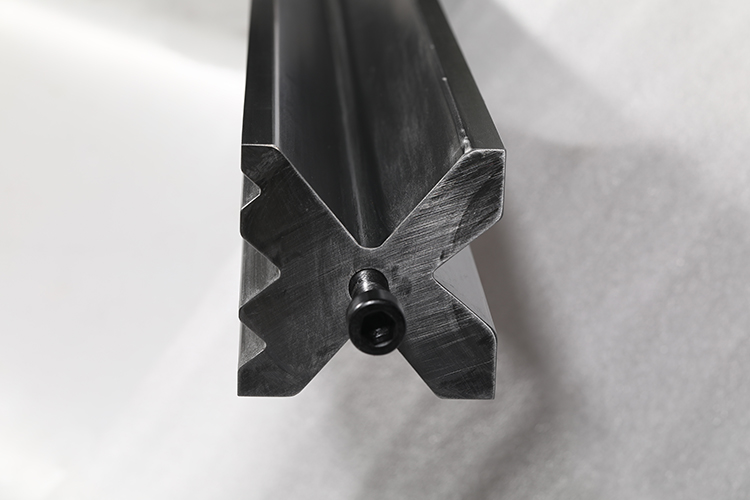

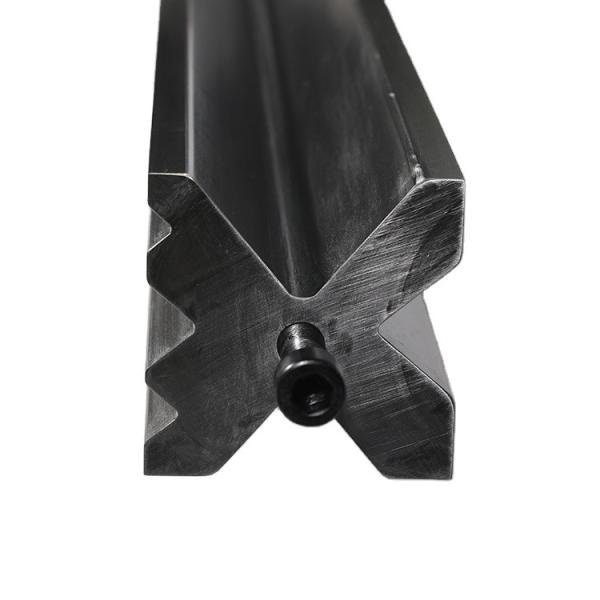

Hydraulic Sheet Metal Forming Dies Multi V Bending Die

China Best Hydraulic Sheet Metal Forming Press Brake Multi-V Bottom Bending Die

Product Description

Press brake tool. It is a tool used by the bending machine to form and process sheet metal. This tool consists of various parts, and different molds consist of different parts. It mainly realizes the processing of the shape of the article by changing the physical state of the formed material. A tool used to make a blank into a specific shape and size under the pressure of a bending machine.

Name	Press Brake Bottom Die
Material	42CrMo
Color	Metallic
Size	Customizable sizes
Hardness	45-50HRC
Precision Level	Very High
Package	Wooden crate with soft film layers inside
application	Used on press brake machine

Ordering Information

1. The price and pictures are for reference only, due to the particularity of the products, different specifications, different materials, different technical requirements, prices and pictures are not the same, please be sure to explain the specification materials and requirements, leave the way to contact you, We will contact you in time to give you a quote. 2. When contacting with our customer service staff, please tell us if you have purchased other products from our factory. Our company has record records for all customers so that you can easily find your original order information and save your precious time. 3. In order to provide you with the required products, please provide the product specifications, models and machine specific manufacturers, individual precision products also require you to provide your drawings, pictures or samples. 4. standard parts we can be shipped within a Three weeks, non-standard parts of the cycle, according to your workpiece is difficult to set! 5. The price and the picture are for reference only. Actually according to the needs of the pro, different prices of materials of different specifications and materials are also different

Products Show

Standard mould
1. When ordering a standard mold, first select the shape of the mold.

2. Provide the total length, angle, sharp R, die height, etc.
3. The mold that needs to be divided can be divided into dimensions.

Special forming mould
1. Provide the cross section shape drawing of product workpiece .
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.

Product Categories

Exhibition & Certificate

FAQ

1. Can you put my brand name (logo) on these products?
Yes we can, but only for products length less than 1000mm.

2. When can you ship the products after we make payment?
Production time is normally 10-25 days. We will deliver your products to port in 2 days

3. What is the Minimum Order Quantity (MOQ) for your OEM service?
MOQ:1pc

4. How can you guarantee the quality?
We are the only constitutor of Chinese National Press Brake Mold Industry Standard. We will offer you 3 months guarantee once you purchase from us. We have IQNET Certificate.

5. Is it possible to visit your company? How can I get there?
We would love to have you. We can send you invitation for VISA application and we will collect you in Nanjing Airport or Railway station.
